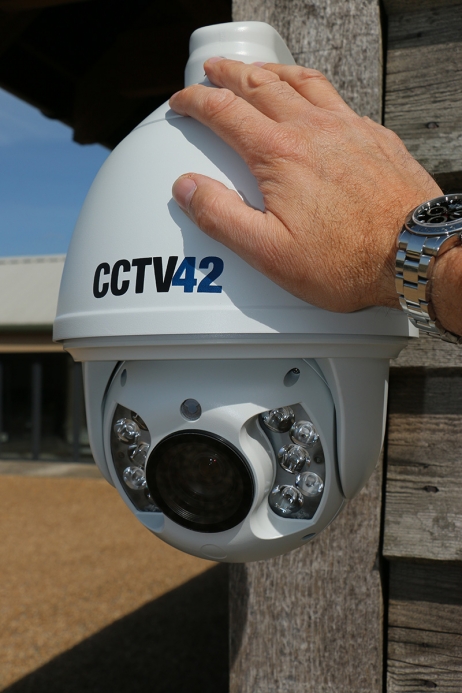

A fantastic HD-TVI full HD 1080P PTZ (pan, tilt, zoom) camera which should cover most eventualities and can be used either inside or outdoors. The camera features built-in infrared illumination, a weak point in most PTZ cameras meaning they don't…
A fantastic HD-TVI full HD 1080P PTZ (pan, tilt, zoom) camera which should cover most eventualities and can be used either inside or outdoors. The camera features built-in infrared illumination, a weak point in most PTZ cameras meaning they don't work at night in total darkness. No such problems here.
Camera number within the group (1-255), protocol and baud rate are all set by easy-to-use DIP switches. The camera can be set to operate in either Pelco P or Pelco D with Baud rate settings of 2400, 4800 or 9600.
There is a full on-screen menu accessed via the controller covering both movement and image features
This PTZ camera can be controlled using either our DVR recorders or a stand-alone 3D joystick controller.

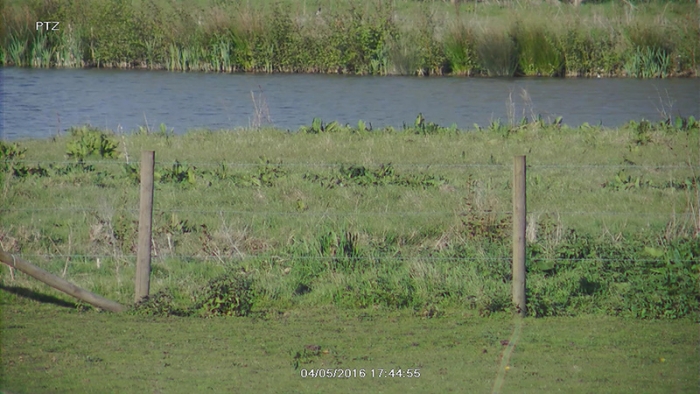

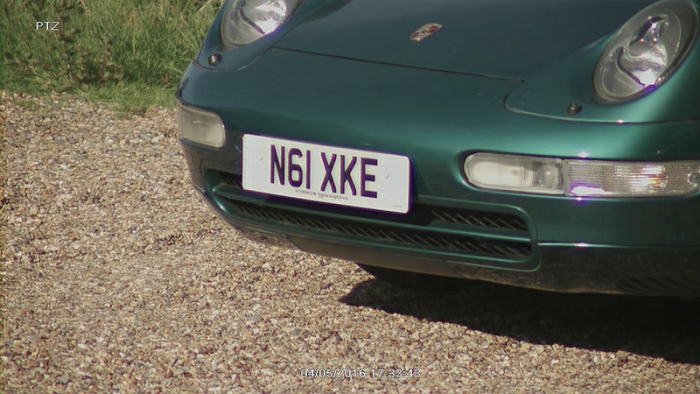

Movement is zoom dependent; this means when you zoom in on a subject the pan and tilt speed reduces making accurate positioning much easier. The camera's built-in infrared illumination is also zoom dependent. This means the central section of the illumination increases in intensity as you zoom in. The infrared and lens combination on this PTZ camera gives it an effective range of around 100 metres.
Preset points can be stored on the camera and those points linked together to form a tour. The preset point stores both position and zoom settings, and the time delay between points can also be programmed. When used with our 3D controller it is also possible to manually trace a path and have the camera repeat that route. All stored information is retained by the camera in the event of a power failure.
The camera is supplied with a dedicated power supply.
The video connection is standard BNC, 12-volt power connection is via a 5.5mm x 2.1mm or 5.5 x 2.5mm DC socket. RS485 control is a screw terminal inline block.

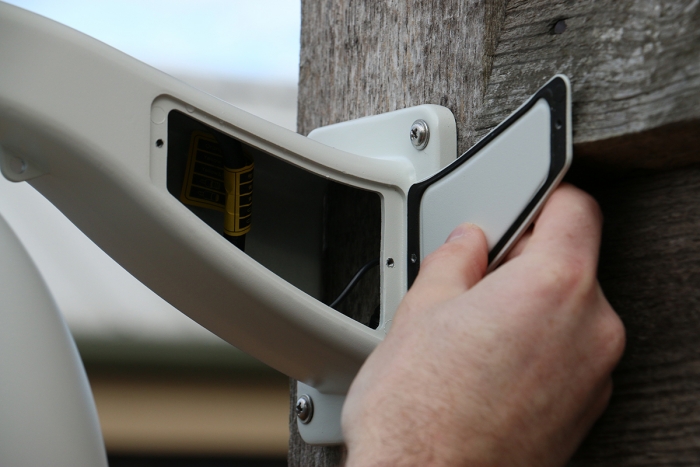

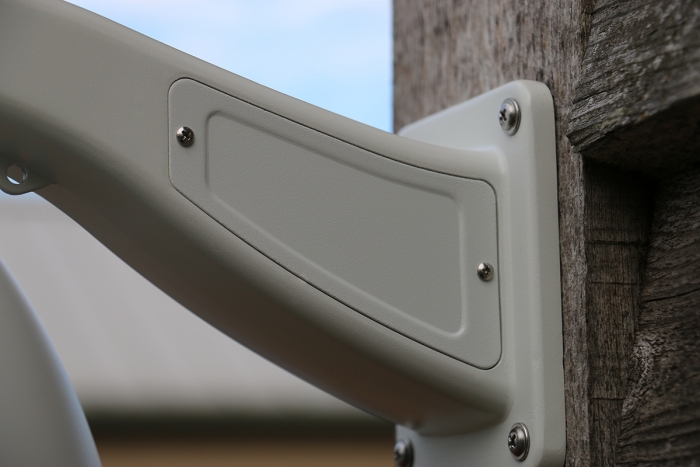

We also stock a hinged mounting box that contains the camera connections and makes installation or servicing easier.
